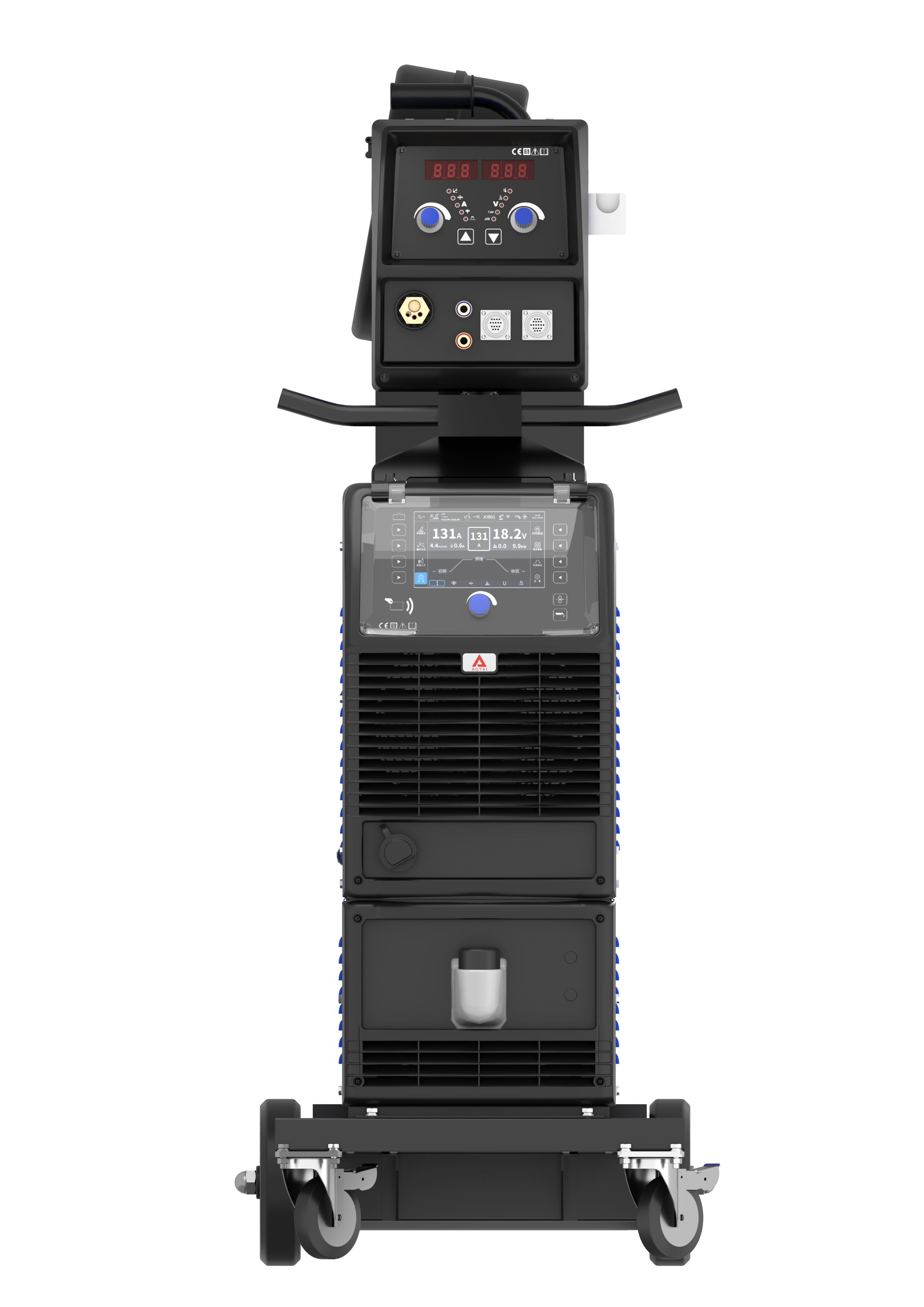

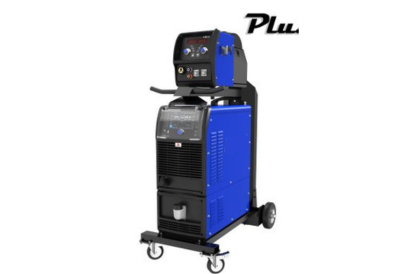

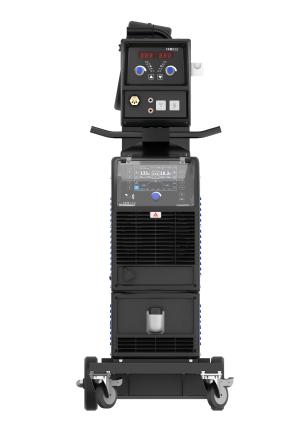

Visual MIG500PRO

Features

LCD HMI: 7″ LCD touch screen, easy operation
High-frequency inverter: 60kHz inverting frequency, finely managing droplet energy in real-time, concentrated arc energy, high arc stiffness
Stable arc: latest energy control solution, up to 45m pulse welding loop cable, stable welding with low current, non-broken arc
Precise current: wider adaptive range of mixed gas, more precise consistency between electrode extension length and current
Easy arc striking: freely switching arc striking mode, high arc striking success rate
Advanced process: It equips SSP(Super short arc pulse), twin pulses, SLST, CV, and other welding process modules, even customized developing process modules according to customer requirements. The secondary chopper technology helps to realize optimal welding current and voltage control.
Aluminum alloy welding expert: stronger oxidation film breakthrough ability of aluminum alloy welding, strong arc directivity, even metal transfer, fine and beautiful welds appearance
Sheet welding expert: ultra-low spatter technology, best short-circuit arc ignition energy control, Min. thickness can reach 0.6mm
Stable wire feeding: newly designed twin-closed-loop wire feeding control system cooperates with a large-torque permanent magnet motor to ensure precise and stable wire feeding
One-key operation: save and recall 100 sets of parameters
Remote software upgrade

Specification

	Visual MIG500Pro
Rated input voltage/frequency (V/Hz)	3 phase, AC380V±10%, 50/60Hz
Rated input power (KVA)	25
Rated input current (A)	45
Display	7″ LCD (Touch screen)
Range of welding current (A)	60~500
Range of welding voltage (V)	17~39
OCV (V)	75
Duty cycle (%)	100
Full-load efficiency (%)	≥87
Wire diameter (mm)	Ф0.8,Ф1.0,Ф1.2
Gas flow (L/min)	10~25
Dimension (mm )	660320560
Weight (Kg/lb)	58/127.8
Insulation class	H
IP class	IP23

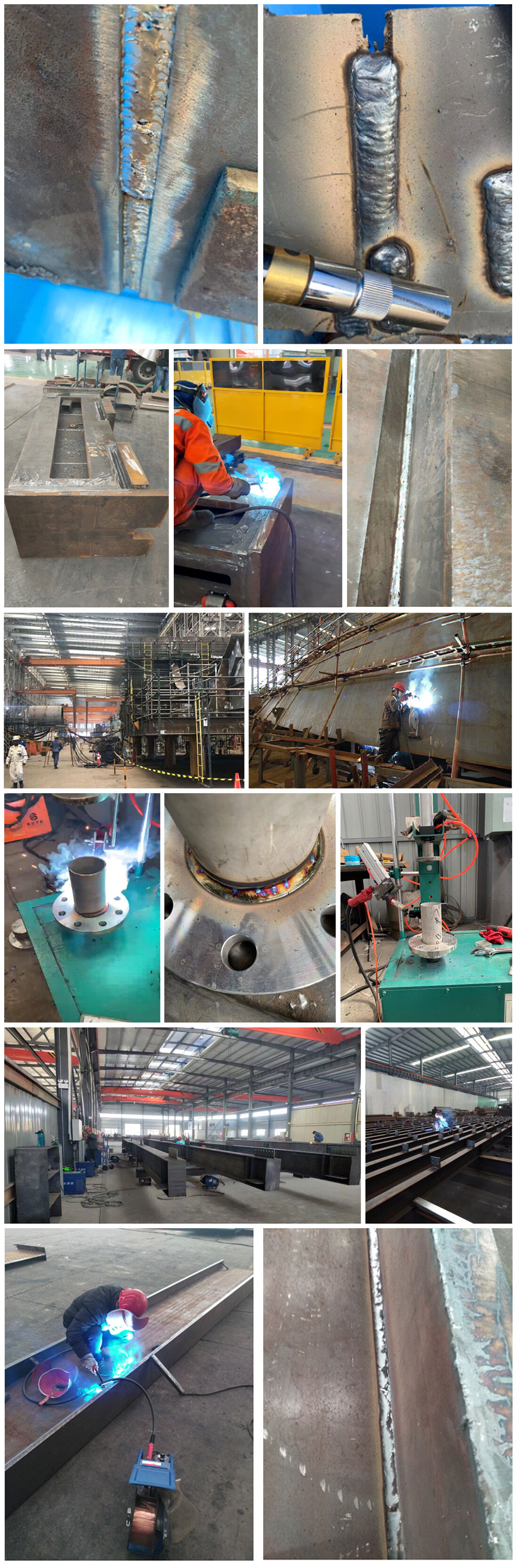

Application

500m plus应用案例.jpg

Accessories

Download

Visual MIG500PRO.pdf
